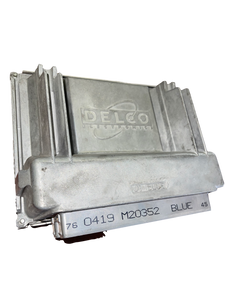

PROGRAMMED - GM Engine Computer PCM ECM - Service number: 12586243
This computer fits many different vehicles including:
-This is necessary to ensure that your vehicle will run and function properly. Just because a computer service number matches yours does not mean it will work.
- ASTRO 04 Elec Cont Unit (ECU); (LH Fr by battery)
- AVALANCHE 2500 04 Elec Cont Unit (ECU); (LH Fr under battery)
- BLAZER S10/JIMMY S15 04 Elec Cont Unit (ECU); (RH Fr eng comp)
- CHEVROLET VAN 04 Elec Cont Unit (ECU); (LH Rr eng comp)
- CORVETTE 04 Elec Cont Unit (ECU); (RH eng comp), ID 12586243
- CTS 04-05 Elec Cont Unit (ECU); (RH eng comp), V series, ID 12586243
- ENVOY XL 04 Elec Cont Unit (ECU); 5.3L (next to air box), ID YFKB
- ENVOY XL 04 Elec Cont Unit (ECU); 5.3L (next to air box), ID YFKY
- ENVOY XL 04 Elec Cont Unit (ECU); 5.3L (next to air box), ID YFPZ
- ENVOY XL 04 Elec Cont Unit (ECU); 5.3L (next to air box), ID YFYY
- ENVOY XL 04 Elec Cont Unit (ECU); 5.3L (next to air box), ID YHRA
- ENVOY XUV 04 Elec Cont Unit (ECU); 5.3L (next to air box), ID YFKB
- ENVOY XUV 04 Elec Cont Unit (ECU); 5.3L (next to air box), ID YFKY
- ENVOY XUV 04 Elec Cont Unit (ECU); 5.3L (next to air box), ID YFPZ
- ENVOY XUV 04 Elec Cont Unit (ECU); 5.3L (next to air box), ID YFYY
- ENVOY XUV 04 Elec Cont Unit (ECU); 5.3L (next to air box), ID YHRA
- GMC VAN 04 Elec Cont Unit (ECU); (LH Rr eng comp)
- GTO 04 Elec Cont Unit (ECU); main (LH eng)
- RAINIER 04 Elec Cont Unit (ECU); 5.3L (next to air box), ID YFKB
- RAINIER 04 Elec Cont Unit (ECU); 5.3L (next to air box), ID YFKY
- RAINIER 04 Elec Cont Unit (ECU); 5.3L (next to air box), ID YFPZ
- RAINIER 04 Elec Cont Unit (ECU); 5.3L (next to air box), ID YFYY
- RAINIER 04 Elec Cont Unit (ECU); 5.3L (next to air box), ID YHRA
- S10/S15/SONOMA 04 Elec Cont Unit (ECU); (RH Fr eng comp)
- SAFARI (GMC) 04 Elec Cont Unit (ECU); (LH Fr by battery)
- SIERRA 1500 PICKUP 04 Elec Cont Unit (ECU); (LH Fr under battery), w/o hybrid; w/4.3L
- SIERRA 2500 PICKUP 04 Elec Cont Unit (ECU); (LH Fr under battery), gasoline, 8.1L
- SIERRA 3500 PICKUP 04 Elec Cont Unit (ECU); (LH Fr under battery), gasoline, 8.1L
- SILVERADO 1500 PICKUP 04 Elec Cont Unit (ECU); (LH Fr under battery), w/o hybrid; w/4.3L
- SILVERADO 2500 PICKUP 04 Elec Cont Unit (ECU); (LH Fr under battery), gasoline, 8.1L
- SILVERADO 3500 PICKUP 04 Elec Cont Unit (ECU); (LH Fr under battery), gasoline, 8.1L
- SSR 04 Elec Cont Unit (ECU); (next to air box), ID YFKB
- SSR 04 Elec Cont Unit (ECU); (next to air box), ID YFKY
- SSR 04 Elec Cont Unit (ECU); (next to air box), ID YFPZ
- SSR 04 Elec Cont Unit (ECU); (next to air box), ID YFYY
- SSR 04 Elec Cont Unit (ECU); (next to air box), ID YHRA
- SUBURBAN 2500 04 Elec Cont Unit (ECU); (LH Fr under battery), 8.1L
- TRAILBLAZER EXT 04 Elec Cont Unit (ECU); 5.3L (next to air box), ID YFKB
- TRAILBLAZER EXT 04 Elec Cont Unit (ECU); 5.3L (next to air box), ID YFKY
- TRAILBLAZER EXT 04 Elec Cont Unit (ECU); 5.3L (next to air box), ID YFPZ
- TRAILBLAZER EXT 04 Elec Cont Unit (ECU); 5.3L (next to air box), ID YFYY
- TRAILBLAZER EXT 04 Elec Cont Unit (ECU); 5.3L (next to air box), ID YHRA
- YUKON XL 2500 04 Elec Cont Unit (ECU); (LH Fr under battery), 8.1L
-This Computer will be programmed to your VIN and will come with the latest GM calibration for your vehicle
-This is necessary to ensure that your vehicle will run and function properly. Just because a computer service number matches yours does not mean it will work.
-All Computers come with a One Year Warranty (non transferable)
-ASK US ABOUT PERFORMANCE PROGRAMMING FOR YOUR VEHICLE
We do GM performance programming and can help you get the most out of your vehicle, including engine mods trouble codes, speed limit removal, Rev limiter, transmission shift firmness, cooling fan temp and much more. We have no limitations when it comes to the vehicles we program. If you are interested Send us a message or contact us by phone.
(330)-689-8957
(330)-689-8957
-IMPORTANT:
The 30 minute security relearn procedure will need to be done before the car will start with the replacement computer. The manual procedure requires no tools except a battery charger or jumper cables from another vehicle. This is necessary because the key will be on for 30+ minutes. It can also be done with a scan tool. Some vehicles are more difficult to do than others requiring multiple tries using the manual procedure. For these vehicles we recommend the use of a scan tool.
IN SOME CASES:
A crankshaft variation relearn may need to be performed once the vehicle is
running. This will be evident if the check engine or service engine soon light comes on once the vehicle is running. You will need access to a scan tool to do this and clear any related trouble codes (Code P0315). If this is not available to you a repair shop will have to perform this and clear the related trouble code. The vehicle will run normal but the ”service engine soon”light will come on and a trouble code will be stored until this is resolved.
NOTICE:
Both of these procedures are the responsibility of the end user. We sell engine computers programmed to your vehicle, it is the end users responsibility to to both the vehicle theft deterrent relearn and the crankshaft variation relearn to make the computer functional on the vehicle.
IN SOME CASES:
A crankshaft variation relearn may need to be performed once the vehicle is
running. This will be evident if the check engine or service engine soon light comes on once the vehicle is running. You will need access to a scan tool to do this and clear any related trouble codes (Code P0315). If this is not available to you a repair shop will have to perform this and clear the related trouble code. The vehicle will run normal but the ”service engine soon”light will come on and a trouble code will be stored until this is resolved.
NOTICE:
Both of these procedures are the responsibility of the end user. We sell engine computers programmed to your vehicle, it is the end users responsibility to to both the vehicle theft deterrent relearn and the crankshaft variation relearn to make the computer functional on the vehicle.
We can disable both of these for a small programming fee but it is not recommended unless all other options are unavailable as it will cause various dash light under certain circumstances.
If you have any other questions please feel free to give us a call at (330)-689-8957
